Trigger SOA workflow from java

In this blog I am going to explain how SOA workflow can be triggered from Java application. SOA workflow contains BPEL process and Human Task. BPEL process initiate the workflow and complete the workflow, where as Human Task represent the action of the workflow like assigning task for approval. From java based application, we can call the BPLE process to initiate the workflow. While calling the BPEL process, we have to provide input as payload. In this example, I am explaining the one way calling of SOA composite, where Java will only call the workflow, but will not expect any return.

Before proceed with the development work, some constraints need to be followed.

1. Usually BPEL process is linked with WebService binding exposed service. If we need to call the composite from java, we need to add Direct Binding service. But we also have to make sure that Direct Binding service is not feeding the payload data to BPEL process. Here is the section we need to add in composite.xml

1. Click on the Exposed Service and click on Insert

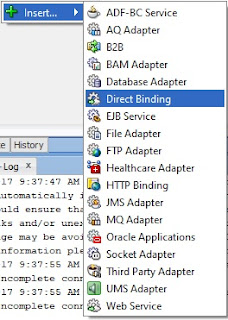

2. Select Direct Binding

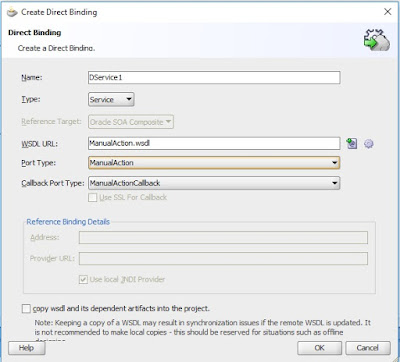

3. Give a name (e.g. DService1).
4. Select the WSDL same as the web service binding (e.g. ManualAction.wsdl in my example).
5. Choose the port type as the non-callback service (e.g. ManualAction in my example).
6. Choose the Callback Port Type as callback service (e.g. ManualActionCallback.wsdl in my example).
7. Click ok to create the binding.

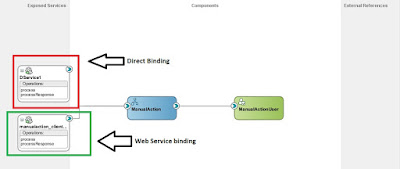

8. Once the Direct Binding is created, it will look something like below:

9. Now, you have to make the wiring so that Direct binding will point to the Web Service binding. Below xml tag needs to be added in the composite.xml

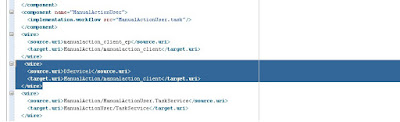

   <wire>

    <source.uri>DService1</source.uri>

    <target.uri>ManualAction/manualaction_client</target.uri>

  </wire>

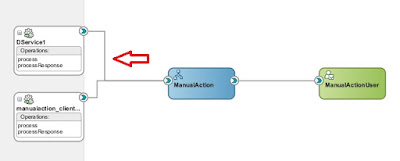

   After adding the wire, it should looks like below

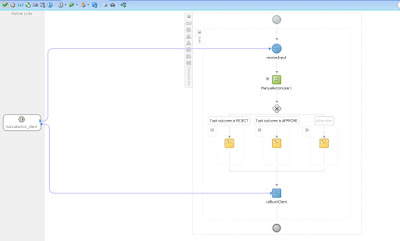

 10. Now you can modify the BPEL file according to your business case. Here in this example I have added a Human Task named ManualActionUser.

11. Now the SOA composite is ready. We have to create a java call for this composite.
12. Create a simple java project and below libs to the classpath

Febric-common.jar
Soa-infra-mgmt.jar
Wsclient-extended.jar
Wlfulclient.jar
Common-logging.jar


13. Use the below code to a new class file.

import java.util.HashMap;
import java.util.Map;
import java.util.UUID;
import javax.naming.Context;
import oracle.soa.api.JNDIDirectConnectionFactory;
import oracle.soa.api.PayloadFactory;
import oracle.soa.api.XMLMessageFactory;
import oracle.soa.api.invocation.DirectConnection;
import oracle.soa.api.invocation.DirectConnectionFactory;
import oracle.soa.api.message.Message;
import oracle.soa.api.message.Payload;
import oracle.xml.parser.v2.XMLPrintDriver;
import org.xml.sax.InputSource;

public class TestWF1 {
    public TestWF1() {
        super();
    }

    public static void main(String[] args) throws Exception {
        String operation = "process";

        // This is the request message XML
        String ns = "http://xmlns.oracle.com/TestWLWS/ManualAction/ManualAction";
        String payloadXML = "<process anualaction="" estwlws="" http:="" xmlns.oracle.com="" xmlns="\">" +
                            "<oldvalue>1</oldvalue>" +
                            "<newvalue>Testing</newvalue>" +
                            "<approverusername>REQUAP9</approverusername>" +
                            "<approverrolename>2</approverrolename>" +
                            "<workflowrequired>3</workflowrequired>" +
                            "<processinstancekey>4</processinstancekey>" +
                            "<targetprocesstaskname>5</targetprocesstaskname>" +
                            "<currentprocesstaskinstancekey>6</currentprocesstaskinstancekey>" +
                            "<applicationname>7</applicationname>" +
                            "<beneficiaryuserlogin>8</beneficiaryuserlogin>" +
                            "<beneficiaryuserkey>123654789</beneficiaryuserkey>" +
                            "<processformfieldname>10</processformfieldname>" +
                            "</process>";

        String serviceAddress = "soadirect:/default/ManualAction!1.0/DService1";

        // Specify the direct binding connection properties
        Map<string object=""> props = new HashMap<string object="">();
        props.put(Context.INITIAL_CONTEXT_FACTORY, "weblogic.jndi.WLInitialContextFactory");
        props.put(Context.PROVIDER_URL, "t3://" + "localhost" + ':' + "8001");
        props.put(Context.SECURITY_PRINCIPAL,"weblogic");
        props.put(Context.SECURITY_CREDENTIALS, "Welcome1");

        // Create the direct binding connection, using those context properties
        DirectConnectionFactory factory = JNDIDirectConnectionFactory.newInstance();
        DirectConnection dc = null;
        try {
           dc = factory.createConnection(serviceAddress, props);

            oracle.xml.parser.v2.DOMParser op = new oracle.xml.parser.v2.DOMParser();
            op.parse(new InputSource(new StringReader(payloadXML)));
            XMLPrintDriver pd = new XMLPrintDriver(System.out);
            pd.setFormatPrettyPrint(true);
            pd.printDocument(op.getDocument());

            Map partData = new HashMap();
            partData.put("payload", op.getDocument().getDocumentElement());
            Payload payload = PayloadFactory.createXMLPayload(partData);

            Message request = XMLMessageFactory.getInstance().createMessage();
            request.setPayload(payload);

            String uuid = "uuid:" + UUID.randomUUID();
            System.out.println("uuid = "+ uuid);
            request.setProperty(request.CONVERSATION_ID, uuid);
            dc.post("process", request);

        } catch(Exception e){
            e.printStackTrace();
        }finally {
            dc.close();
        }
    }

}

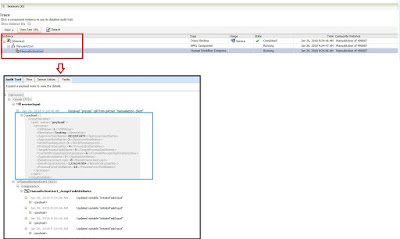

14. After running the code check from the Weblogic EM console, by checking in instance of the composite
